110º ECONOMY SOFT CLOSE FULL OVERLAY SNAP HINGE

110º ECONOMY SOFT CLOSE FULL OVERLAY SNAP-ON HINGE

CAM ADJUSTABLE HINGE ARM

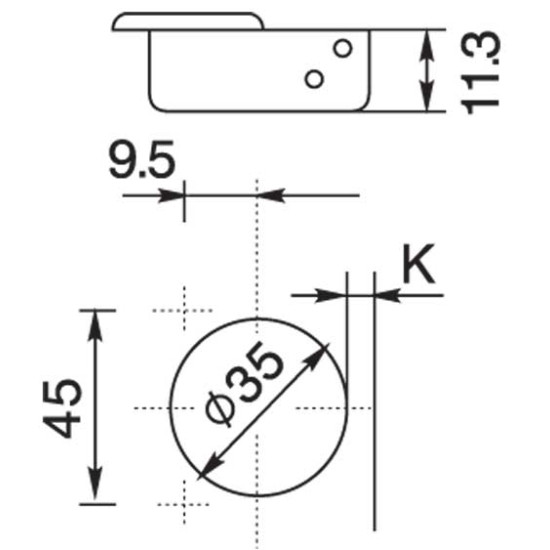

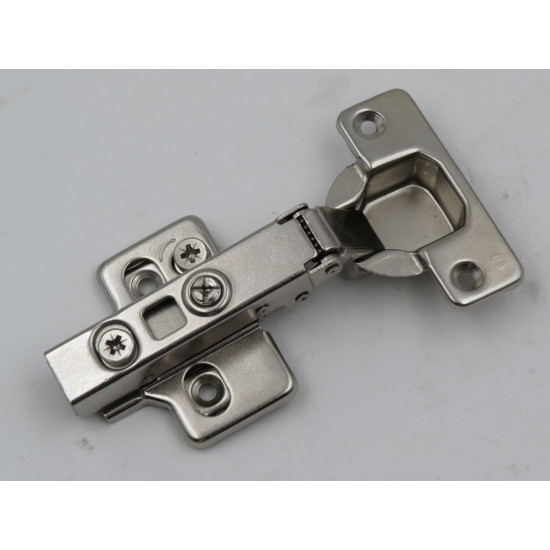

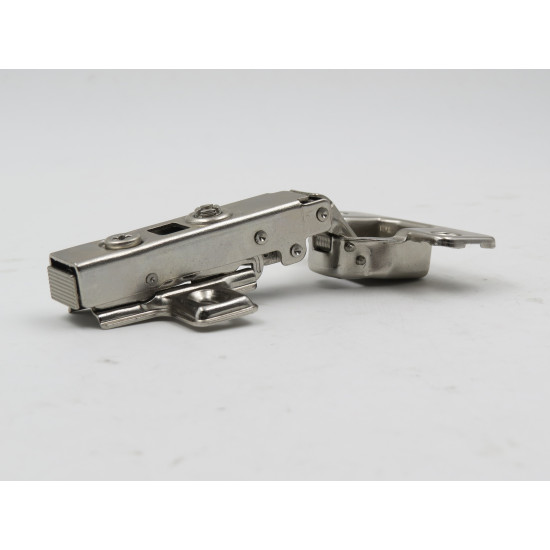

Long arm European style cabinet hinge. Hydraulic Soft Close Silent System is built into the hinge, cabinet door will close slowly even you slam the door! Reinforce supporting Arms. Hinge opens 110 degrees and features full adjustability after installation. Hinge fits into a "cup" drilled into the back side of the cabinet door. The cup diameter is 35mm (1-3/8"). Hinge is made from steel and is nickel plated. For full overlay doors. The hinge and the mounting plate attach to each other by snapping together without the use of additional fasteners

• Clip-On Hinge

• Soft close cylinder inside hinge arm

• 35mm cup

• 45mm drilling pattern

• All steel construction

• No dowels

• Satisfaction guaranteed

Not Included: Installation Screws, Hinge Mounting Plate and Hinge Arm Cover Plate.
